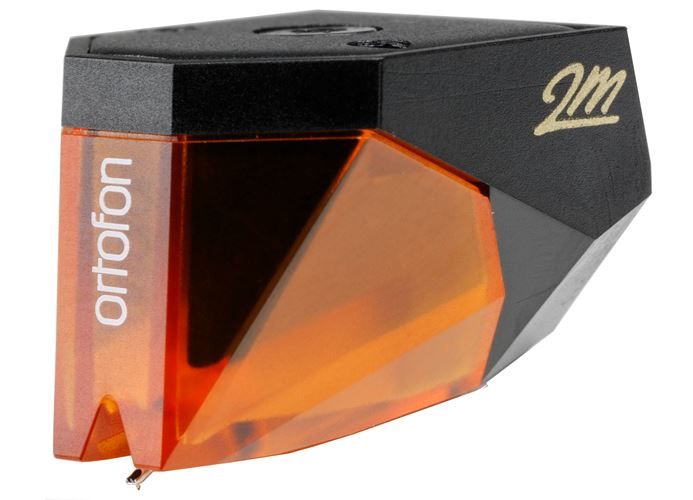

Ortofon 2M Bronze Hi-fi cartridge
Ortofon 2M Bronze
The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again. That is what hi-fi means to us, and that is what you get with the 2M Bronze. Spare styli can be ordered separately when a replacement is needed.
Specs:
- Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
- Channel balance at 1 kHz - 1 dB
- Channel separation at 1 kHz - 26 dB
- Frequency range at - 3dB - 20-25.000 Hz
- Frequency response - 20-20.000 Hz + 2 / - 0 dB
- Tracking ability at 315Hz at recommended tracking force - 80 µm
- Compliance, dynamic, lateral - 22 µm/mN
- Stylus type -
- Stylus tip radius - µm
- Tracking force range - 1,4-1,7g (14-17 mN)
- Tracking force, recommended - 1,5 g (15 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1,2 kOhm
- Internal inductance - 630 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Cartridge colour, body/stylus - Black/Orange
- Cartridge weight - 7,2 g
- Replacement stylus unit - 2M Bronze (interchangeable with 2M Black)
This brandnew cartridge comes in an original Ortofon packaging.
