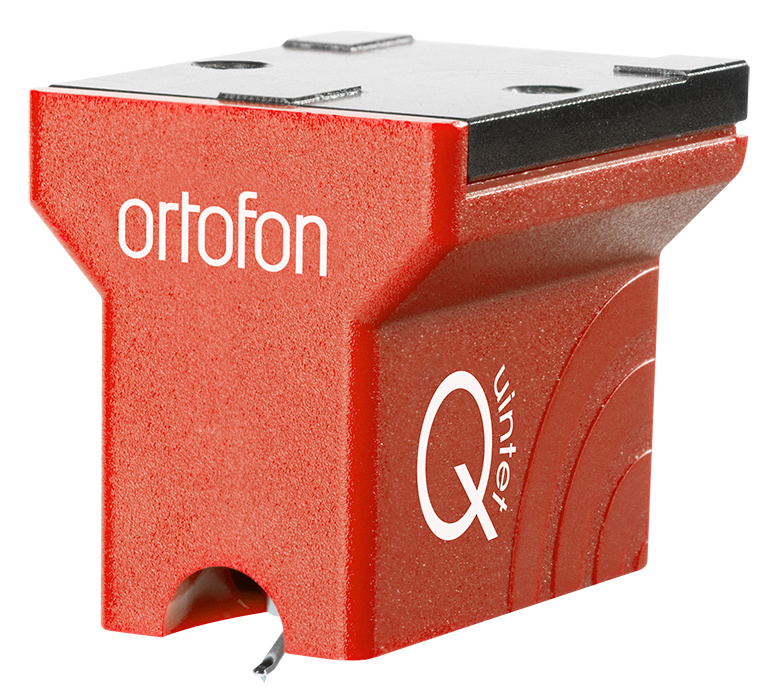

Ortofon Quintet Red Moving Coil cartridge
Quintet Red MC
The Quintet Red is a perfect introduction to the world of Ortofon moving coils. It features an Elliptical diamond which is cut and polished to Ortofon’s high standards. This entry-level MC cartridge has a very good price-to-performance ratio and delivers an open, dynamic sound with a slight touch of warmth.
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.
The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
The LH-4000 headshell is specially recommended for MC Quintet cartridges series.
Specs:
- Output voltage at 1 kHz 5 cm/sec - 0.5 mV
- Channel balance - < 1.5 dB
- Channel separation at 1 kHz - > 21 dB
- Channel separation at 15 kHz - > 14 dB
- Frequency range at -3 dB - 20 - 25.000Hz
- Frequency response 20-20.000 Hz - +/-2.5 dB
- Tracking ability at 315 Hz at recommended tracking force *) - 65 μm
- Compliance, dynamic, lateral - 15 μm/mN
- Stylus type - Elliptical
- Stylus tip radius - r/R 8/18 μm
- Tracking force range - 2.1-2.5 g (21-25 mN)
- Tracking force recommended - 2.3 g (23 mN)
- Tracking angle - 20º
- Internal impedance, DC resistance - 7 Ohm
- Recommended load impedance - >20 Ohm
- Cartridge body material - ABS/Aluminium
- Coil wire material - Copper
- Cartridge colour - Red
- Cartridge weight - 9 g
*) Typical value
Accesories:
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5
This brand new cartridge comes in original Ortofon packaging.
