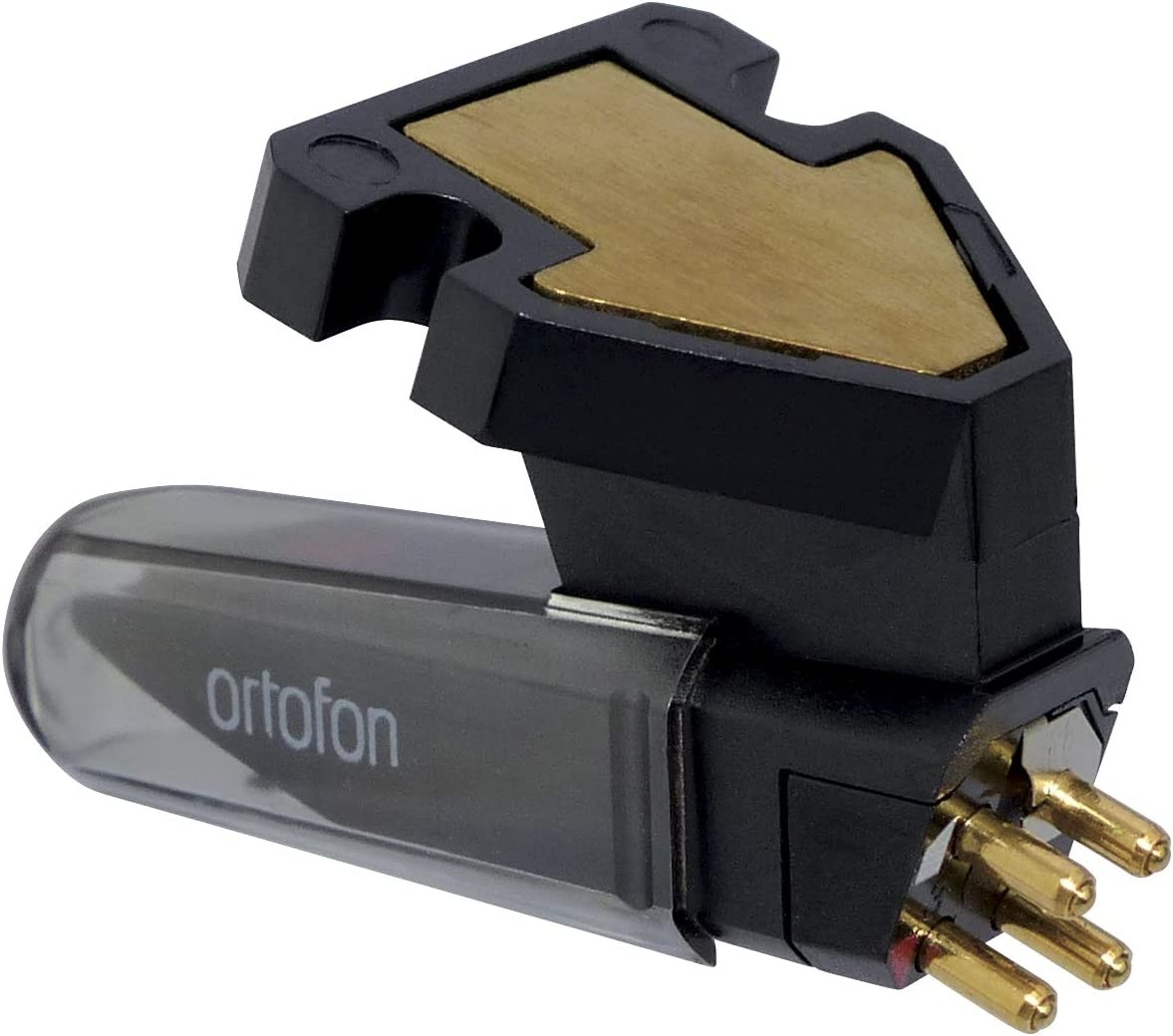

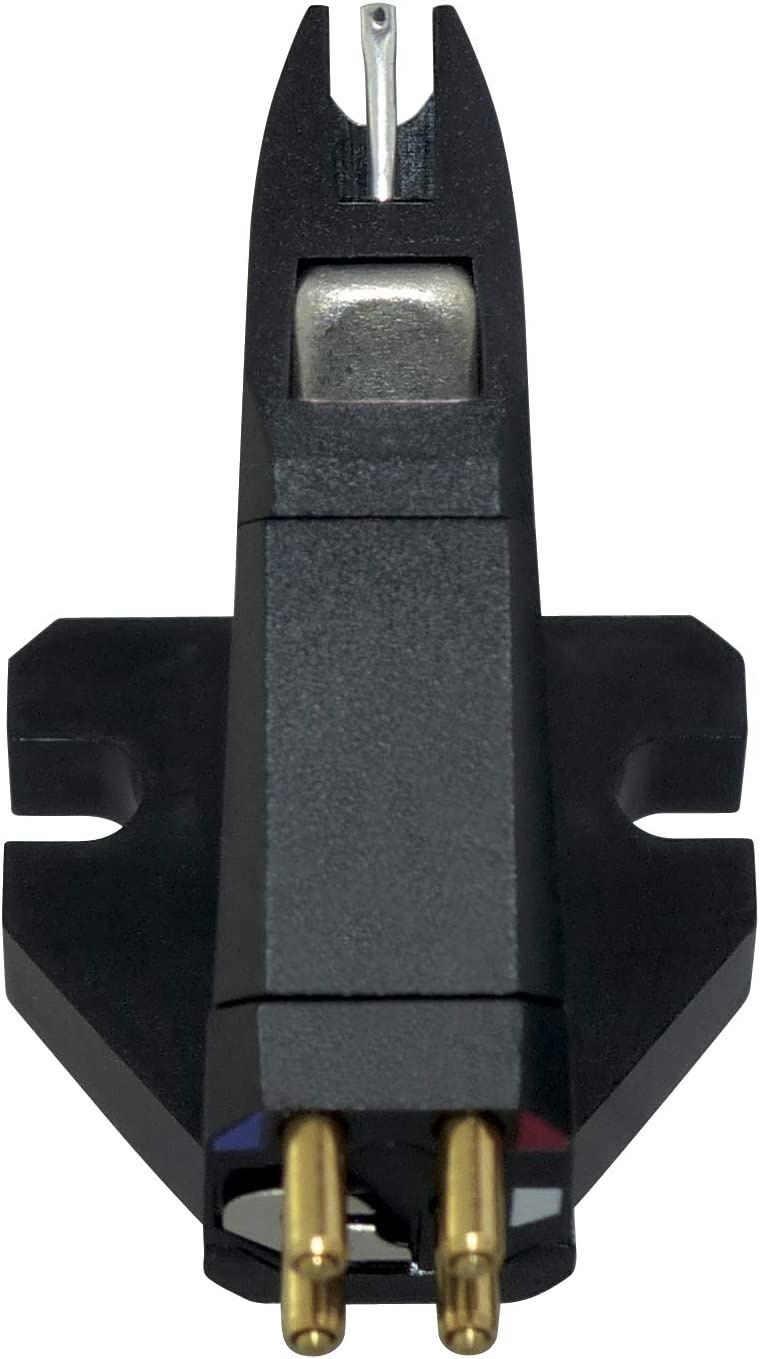

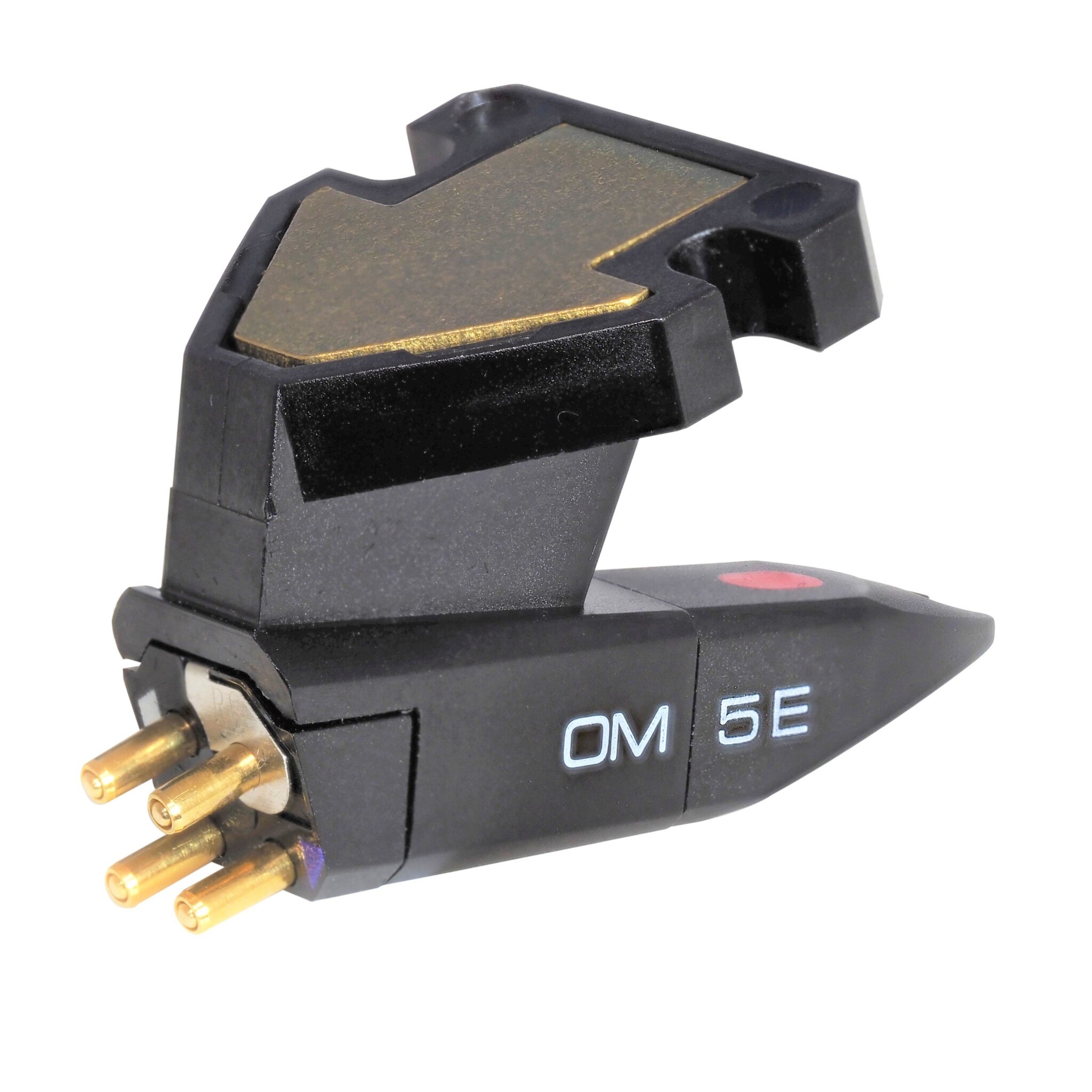

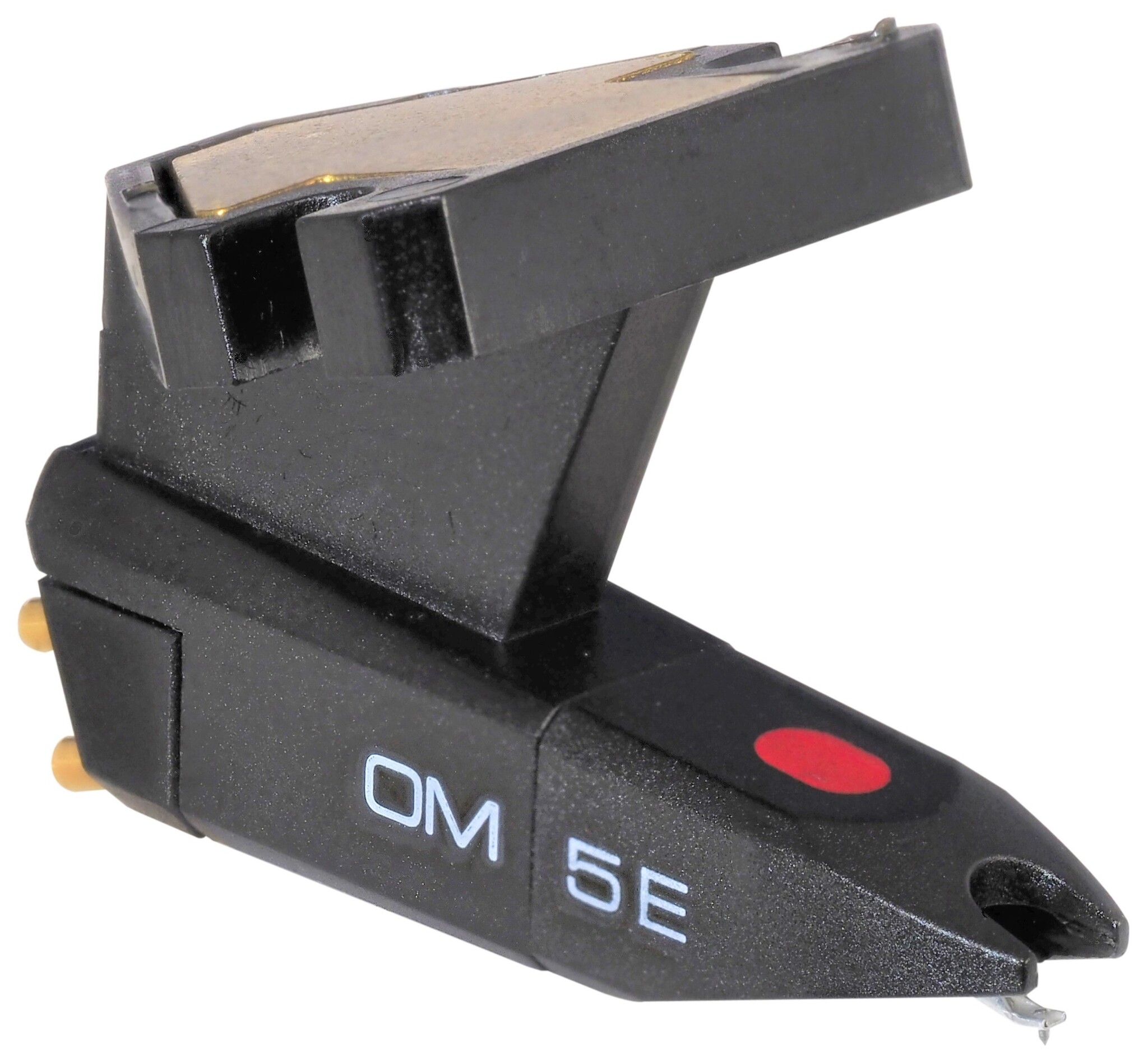

Ortofon OM 5E

Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s.

An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus. We offer a wide range of replacement styli for OM cartridges.

Specs:

• Type: MM
• Fixing: Half-inch mount
• Output voltage: 4,0mV at 1kHz, 5cm/sec.
• Amplifier-connection: Phono MM
• Frequency range: 20-22.000Hz
• Frequency range: 20-20.000Hz ±2dB
• Compliance: 20 µm/mN (lateral)
• Material: diamond, bonded
• Stylus type: elliptical r/R 8/18µm
• Tracking force range: 1,5-2 gram
• Tracking force, recommended: 1,75 gram
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-500pF
• Weight: 2,5 gram (5 gram incl. extra weight)

Setup tips:
Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate. If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g

This brand new cartridge comes in a standard bulk packaging.
